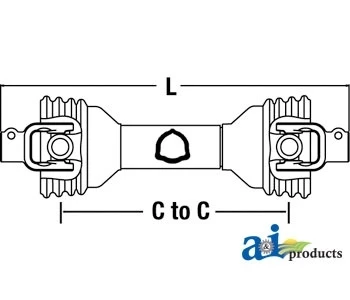

A&I Products A-CS23911 PTO Driveline, W/ 1 3/8″ 6 Spline QD Yokes

Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 39″ (990 mm), Maximum Length: 60″ (1525 mm), Total Collapsed Length: 47″ (1200 mm). Tractor end: 1-3/8″ – 6 Spline, Implement end: 1-3/8″ – 6 Spline. Series: 100. Category: 2 (20 hp). Fits Bondioli & Pavesi 100 Series.

NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

• C to C Max: 1525 mm/ 60″
• C to C Min: 990 mm/ 39″
• Category: 2 (20HP)
• Implement: 1 3/8″ -6
• Series: 100
• Size: 2
• Total Collapsed Length: 1200 mm/ 47″
• Tractor: 1 3/8″ -6
