A&I Products A-CS44514 PTO Driveline, Posthole Digger

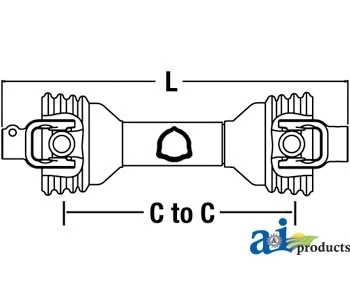

Posthole Digger Driveline Assembly, size 4. Driveline minimum C-to-C is 45″ (1145 mm), maximum C-to-C length is 71″ (1800 mm), total collapsed length is 53″ (1345 mm). Tractor ends: 1-3/8″ 6 Spline and implement ends are 1-1/4″ round bore with 3/8″ pin hole. Driveline rated as category 3 (35 hp). Fits Bush Hog, Land Pride, and Rhino applications.

It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

• C to C Max: 1800 mm/ 71″
• C to C Min: 1145 mm/ 45″
• Category: 3 (35HP)
• Implement: 1 1/4″ RB WITH 3/8″ PH
• Size: 4
• Total Collapsed Length: 1345 mm/ 53″
• Tractor: 1 3/8″ -6
